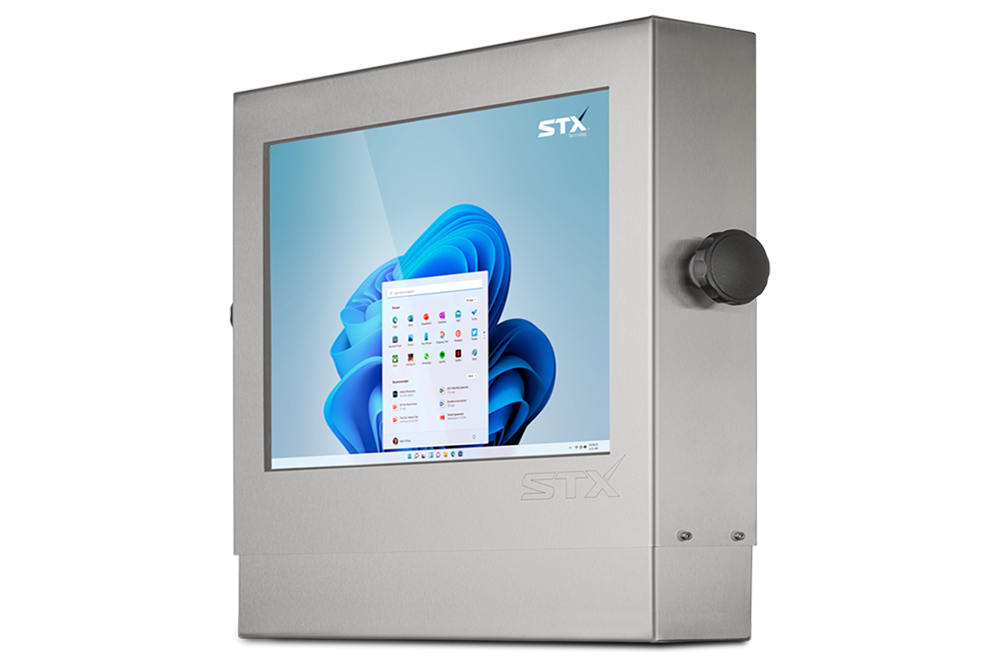

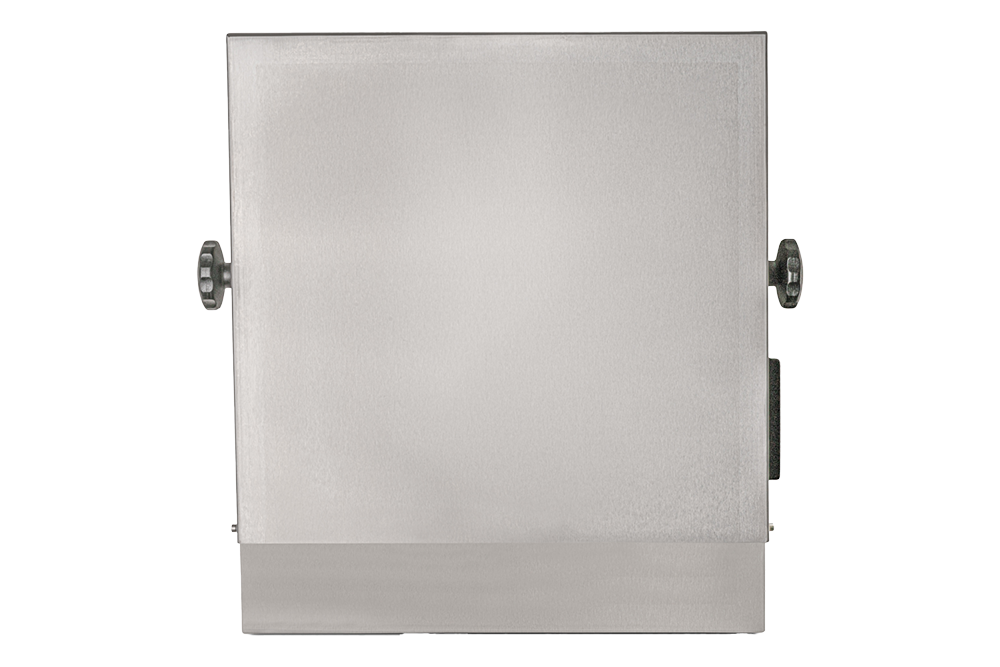

X9019 19 inch Stainless Steel Touch Computer

- 19 inch Touch Screen
- Resolution 1280 x 1024 5:4
- Quad Core / Core i5 / Core i7 CPU Options
- Engineered for Tough Washdown Environments
- IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
- Shielded IP67 / IP68 industrial connectors
- Power Input Options
- 3rd Generation Product (G3)

Overview
Key Features
Order Options
Specifications
Accessories
Similar Products

designed for industrial use

mounting

Engineered Tough for Extreme Environments

110VAC~240VAC or 10VDC~30VDC Power Input
Responsive Touch Screen
Rugged Stainless Steel Enclosure

Proven in Extreme Conditions

IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
Fanless Construction
IP67 / IP68 Connectors

Easy Mounting Options

Standard Side Stud Mounting
Optional VESA Mount
Optional Stands

ip rated industrial connectors

applications

Waterproof Connectors

IP67 / IP68 Industrial Connectors
Power / USB / Ethernet
Connector Protection for Tough Wash Down
Harsh Environment WiFi Antenna

Used Across Industries

Food Processing
Meat Production
Fish Production
Pharmaceutical
Chemical

Automation & Control
Agriculture
Horticulture
Dairy
Mining

Applications

Weigh Scale
Barcode Scanning
Data collection
Grading
Loading Applications
Dispatch

The X9000 Rugged Touch Computer is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

Engineered Tough for Extremely Harsh Environments
Resistive or PCAP Touch Screen
304 or 316 Brushed Stainless Steel finish
IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
Proven reliability in Washdown Environments
110VAC~240VAC or optional 10~30VDC Power Input
IP67 / IP68 industrial connectors
Quad Core / Core i5 / Core i7 CPU Options
Industrial SSD Hard Drive
Network Boot (PXE Boot)
Comprehensive Support

STX Technology Harsh Environment Computer Touch Screen

19 inch Resisitive Touch

STX Technology X9000 Stainless Steel Resisitive Touch PC

X9019-C4-RT

2.4GHz Intel® Quad Core (N4200)

4GB DDR3 RAM

120GB SSD

X9019-C5-RT

3.5GHz Intel® Core™ i5-7300U

4GB DDR4 RAM

120GB SSD

(RAM options: 8GB, 12Gb, 20GB)

X9019-C7-RT

3.5GHz Intel® Core™ i7-7500U

4GB DDR4 RAM

120GB SSD

(RAM options: 8GB, 12Gb, 20GB)

19 inch Projective Capacitive Touch (PCAP)

STX Technology X9000 Stainless Steel PCAP Touch Computer

X9019-C4-PT

2.4GHz Intel® Quad Core (N4200)

4GB DDR3 RAM

120GB SSD

X9019-C5-PT

3.5GHz Intel® Core™ i5-7300U

4GB DDR4 RAM

120GB SSD

(RAM options: 8GB, 12Gb, 20GB)

X9019-C7-PT

3.5GHz Intel® Core™ i7-7500U

4GB DDR4 RAM

120GB SSD

(RAM options: 8GB, 12Gb, 20GB)

Standard Features

304 Brushed Stainless Steel
M10 Side Bolt Mounting with Starnuts
10~30VDC power input
Network Boot (PXE Boot)

Optional Features

Display Brightness:

High Brightnes 600nits
High Brightnes 1000nits

Power:

240VAC
110VAC
Other voltages

System:

256GB / 512GB / 1TB SSD / 2TB
Up to 4 Ethernet 1000Mbp
Up to 8 RS232 / RS422 / RS485
CAN bus
High Speed Serial (to 3M Baud)
3G / 4G or 4G / 5G

Material:

304 Stainless Steel
316 Stainless Steel

Mounting:

M10 Side Bolt Mounting with Starnuts
VESA 100

Finish:

Stainless Steel Brushed
Stainless Steel Highly Polished
Stainless Steel Electro Polished
Matte Black

Display Protector:

Sacrificial Touch Membrane

STX Technology X9019 Stainless Steel Resistive Touch Monitor

Click Here to see the X9000 Harsh Environment Monitor Range

Touch
Touch Type	Resistive Touch or Projected Capacitive Touch (PCAP Touch)

Display
LCD Size	19 inch SXGA, 5:4
Colours	16.7 million
Resolution	1280 x 1080)
Other Supported Resolutions	800 x 600, 1024 x 768
Contrast Ratio	1000:1
Viewing Angle	Horizontal: ±80° , Vertical: 85°
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional 600 or 1000 nits)

System
CPU	Quad Core / Core i5 / Core i7
System Memory	4 GB (optional 8GB / 12GB / 20GB)
Hard Drive	120GB SSD (optional 256GB / 512GB / 1TB SSD / 2TB)
Operating systems	Windows 10 (optional Windows 8 / Windows 7 / Windows 8.1 / Linux / Android)
Boot Options	Network Boot (PXE Boot)

Ports
USB	1 x USB
Serial	1 x RS-232 (optional up to 8 x RS232) RS485 or RS422 CAN Bus High Speed Serial RS232/RS422/RS485 (to 3M Baud)
Connectivity	1 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps) WiFi Dual Band Bluetooth 3G / 4G LTE or 4G / 5G

Mechanical & Environmental
Material	304 Stainless Steel (optional 316 Stainless Steel)
Finish	Brushed (optional Highly Polished)
Mounting	M10 Side Mounts (optional VESA, other)
Connectors	IP67 / IP68
Power Input	10VDC~30VDC (optional 110~240VAC)
Display Protector	Tough Sacrificial Touch Membrane

Accessories
Keyboard	Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options	Various mounting kits available including top side and wall mounting

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.
