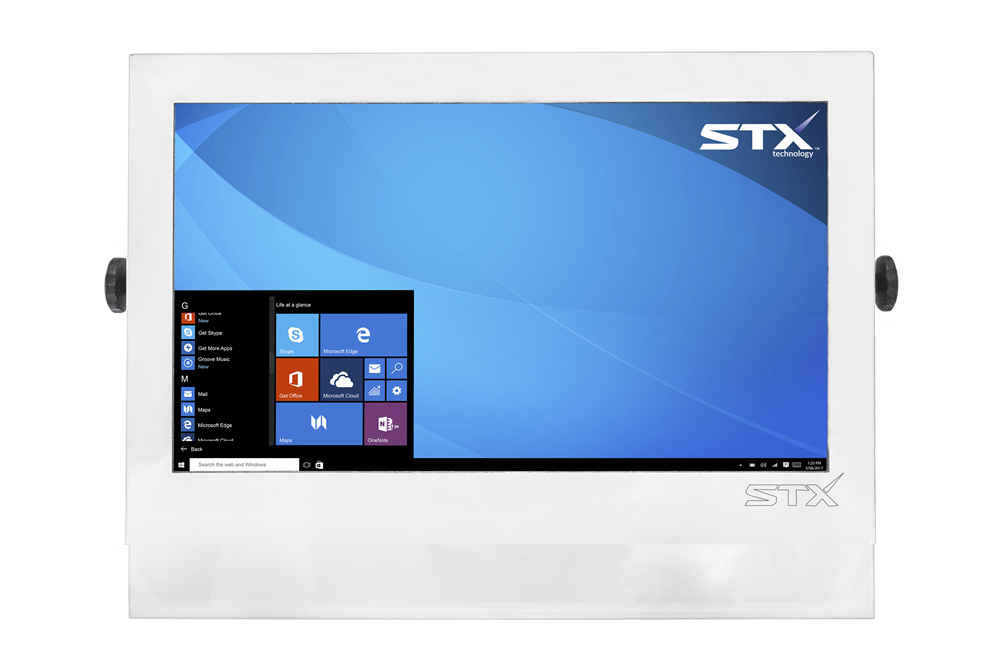

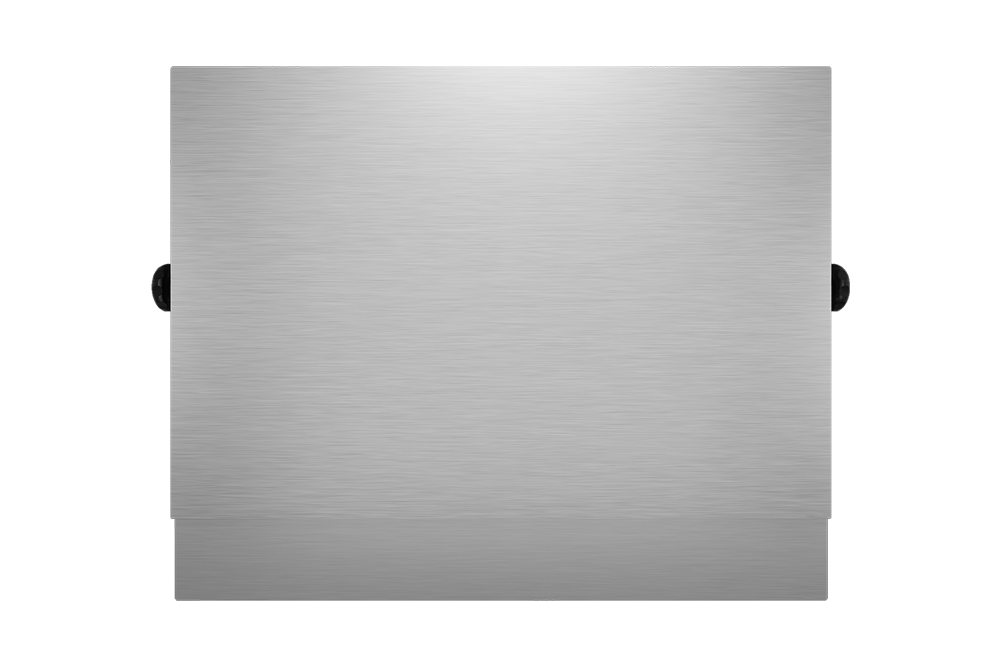

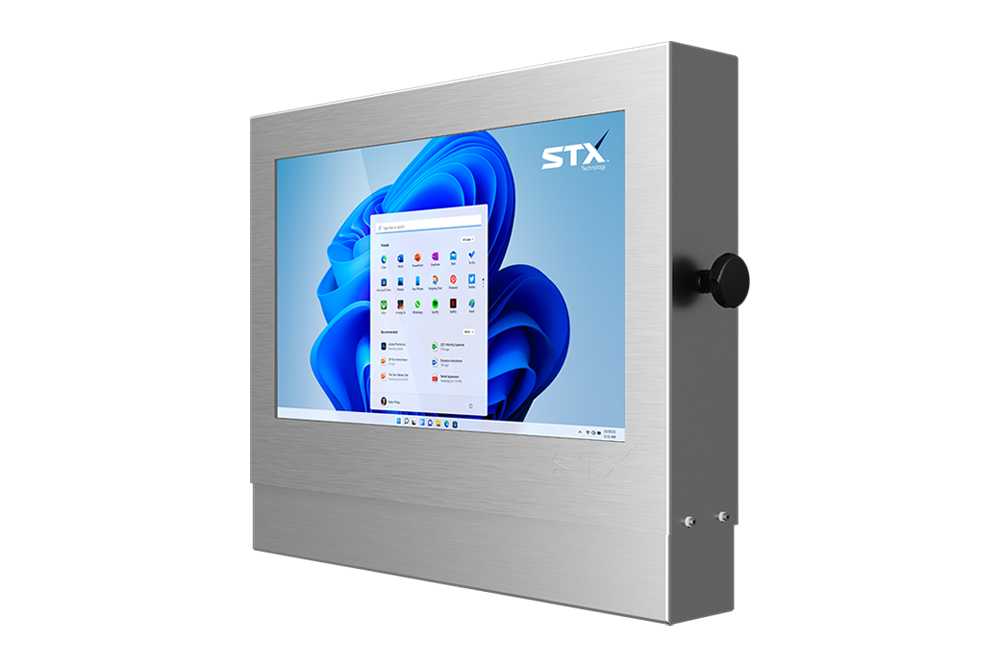

X9016 15.6 inch Stainless Steel Touch Computer

  • - 15.6 inch Touch Screen
  • - Resolution 1920 x 1080 Full HD 16:9
  • - Quad Core / Core i5 / Core i7 CPU Options
  • - TPM2.0 - Windows 11 Compatible
  • - Engineered for Tough Washdown Environments
  • - IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • - Shielded IP67 / IP68 industrial connectors
  • - Power Input Options
  • - 3rd Generation Product (G3)

designed for industrial use

proven in extreme conditions

mounting

Engineered Tough for Extreme Environments

  • 110VAC~240VAC or 10VDC~30VDC Power Input
  • Responsive Touch Screen
  • Rugged Stainless-Steel Enclosure

Proven in Extreme Conditions

  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • Fanless Construction
  • IP67 / IP68 Connectors

Easy Mounting Options

  • Standard Side Stud Mounting
  • Optional VESA Mount
  • Optional Stands

ip rated industrial connectors

industrial use

applications

Waterproof Connectors

  • IP67 / IP68 Industrial Connectors
  • Power / USB / Ethernet
  • Connector Protection for Tough Wash Down
  • Harsh Environment WiFi Antenna

Used Across Industries

  • Food Processing
  • Meat Production
  • Fish Production
  • Pharmaceutical
  • Chemical
  • Automation & Control
  • Agriculture
  • Horticulture
  • Dairy
  • Mining

Applications

  • Weigh Scale
  • Barcode Scanning
  • Data collection
  • Grading
  • Loading Applications
  • Dispatch

The X9000 Rugged Touch Computer is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

  • Engineered Tough for Extremely Harsh Environments
  • Resistive or PCAP Touch Screen
  • 304 or 316 Brushed Stainless Steel finish
  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • Proven reliability in Washdown Environments
  • 110VAC~240VAC or optional 10~30VDC Power Input
  • IP67 / IP68 industrial connectors
  • Quad Core / Core i5 / Core i7 CPU Options
  • Industrial SSD Hard Drive
  • Network Boot (PXE Boot)
  • Comprehensive Support
STX Technology Harsh Environment Computer Touch Screen



15.6 inch Resisitive Touch

STX Technology X9000 Stainless Steel Resisitive Touch PC



X9016-C4-RT

Intel® Celeron® 4205U
8GB DDR4 RAM
120GB SSD





X9016-C5-RT

Intel® Core™ i5-8265U
8GB DDR4 RAM
120GB SSD

(RAM options: 8GB, 12Gb, 20GB)



X9016-C7-RT

Intel® Core™ i7-8565U
8GB DDR4 RAM
120GB SSD

(RAM options: 8GB, 12Gb, 20GB)





15.6 inch Projective Capacitive Touch (PCAP)

STX Technology X9000 Stainless Steel PCAP Touch Computer



X9016-C4-PT

Intel® Celeron® 4205U
8GB DDR4 RAM
120GB SSD





X9016-C5-PT

Intel® Core™ i5-8265U
8GB DDR4 RAM
120GB SSD

(RAM options: 8GB, 12Gb, 20GB)



X9016-C7-PT

Intel® Core™ i7-8565U
8GB DDR4 RAM
120GB SSD

(RAM options: 8GB, 12Gb, 20GB)





Standard Features


  • 304 brushed stainless steel
  • M10 Side Bolt Mounting with Starnuts
  • 10~30VDC power input
  • Network Boot (PXE Boot)






Optional Features

Display Brightness:
  • High Brightnes 600nits
  • High Brightnes 1000nits
Power:
  • 240VAC
  • 110VAC
  • Other voltages
System:
  • 256GB / 512GB / 1TB SSD / 2TB
  • Up to 4 Ethernet 1000Mbp
  • Up to 8 RS232 / RS422 / RS485
  • CAN bus
  • High Speed Serial (to 3M Baud)
  • 3G / 4G or 4G / 5G
Material:
  • 304 Stainless Steel
  • 316 Stainless Steel
Mounting:
  • M10 Side Bolt Mounting with Starnuts
  • VESA 100
Finish:
  • Stainless Steel Brushed
  • Stainless Steel Highly Polished
  • Stainless Steel Electro Polished
  • Matte Black
Display Protector:
  • Sacrificial Touch Membrane





STX Technology X9000 Stainless Steel Resisitive Touch Monitor

Click Here to see the X9000 Harsh Environment Monitor Range





Touch
Touch Type Resistive Touch or
Projected Capacitive Touch (PCAP Touch)



Display
LCD Size 15.6 inch, 16:9
Colours 16.2 million
Resolution 1920 x 1080 Full HD
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° , Vertical: 70°
Response Time 14.5 msec
Brightness (Typical) 350 nits (optional 600 or 1000 nits)



System
CPU Quad Core / Core i5 / Core i7
System Memory 4 GB (optional 8GB / 12GB / 20GB)
Hard Drive 120GB SSD (optional 256GB / 512GB / 1TB SSD / 2TB)
Operating systems Windows 10 (optional Windows 8 / Windows 7 / Windows 8.1 / Linux / Android)
Boot Options Network Boot (PXE Boot)



Ports
USB 1 x USB
Serial 1 x RS-232 (optional up to 8 x RS232)
RS485 or RS422
CAN Bus
High Speed Serial RS232/RS422/RS485 (to 3M Baud)
Connectivity 1 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps)
WiFi Dual Band
Bluetooth
3G / 4g LTE, or 4g / 5G



Mechanical & Environmental
Material 304 Stainless Steel (optional 316 Stainless Steel)
Finish Brushed (optional Highly Polished)
Mounting M10 Side Mounts (optional VESA, other)
Connectors IP67 / IP68
Power Input 10VDC~30VDC (optional 110~240VAC)
Display Protector Tough Sacrificial Touch Membrane



Accessories
Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options Various mounting kits available including top side and wall mounting



Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.



STX Technology Stainless Steel Harsh Environment Printer Box
X9000 Wall Mount Bracket VESA 100
STX Technology Stainless Steel Floor Stand
IP68 Water resistant Silicone Keyboard





Click Here  to find all of our Accessories

Click Here to find all of our Accessories
