X7519 19 inch Industrial Touch Panel Monitor

  • High Quality 19 inch Touch Screen (5:4)
  • IP66 / IP69K
  • Fully sealed enclosure
  • 304 stainless steel
  • Fanless design
  • IP67 / IP68 industrial connectors
  • 10VDC~30VDC
  • VGA or HDMI or DVI
  • Designed specifically for industrial use

    Industrial 10VDC~30VDC power input combined with high-quality touch screen and fully sealed stainless-steel enclosure.

    Proven in extreme conditions

    Strong enclosure, fanless construction and IP67 / IP68 connectors to withstand corrosion, water and dust.

    Easy mounting options

    Standard mounting for the X7200 is VESA 100. Options include Panel Mount, VESA 75x75 and Side Stud Mounting.

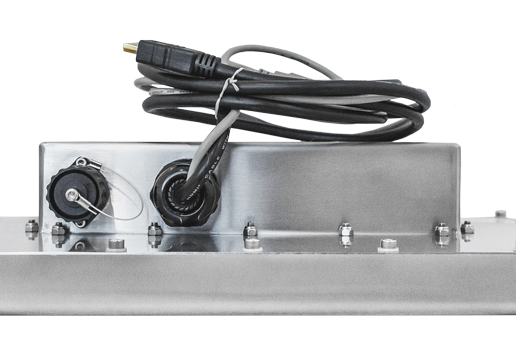

    IP Rated industrial connectors

    IP67 / IP68 industrial connectors are a reliable solution for environments where humidity, water, dust, dirt, corrosion or debris are involved.





    Used across industries

    Warehousing, Food Processing, Dairy, Automation & control, Mining, Transportation, Construction, Agriculture, Horticulture, Forestry, Marine and others.





    Applications

    Can be used for a number of industrial applications including Information display, Safety, CCTV, Data collection, Loading Applications, barcode scanning and others

    Contact the STX Team today to find out more about the X7519 Industrial LCD Monitor and other products.

    • Designed and Built for Tough Environments
    • High Quality 19 inch Resistive or PCAP Touch screen
    • Tough, Strong Stainless Steel Enclosure
    • Brushed, Highly Polished or Matte Black Finishes
    • IP67 (NEMA 6) Connectors
    • VESA Mounting
    • Wide 10VDC~30VDC Power Input
    • Designed and Manufactured in New Zealand
    • Australian, New Zealand and Global support



    X7200 Monitor Range



    X7519-M-RT

    • Resistive Touch Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • VESA Mount 100mm x 100mm



    X7200 Monitor Range



    X7519-M-PT

    • Projective Capacitive Touch (PCAP) Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • VESA Mount 100mm x 100mm

     X7500 Monitor Range



    X7519-M-NT

    • No Touch Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • VESA Mount 100mm x 100mm



    X7200 Monitor Range



    Link Here to Industrial Panel PC Range





    Other upgrades and mounting options





    Materials and Finishes:

    • 316 Stainless Steel
    • Stainless Highly Polished Finish
    • Stainless Brushed Finish
    • Stainless Matte Black Finish
    • Aluminium & Powder Coated Finish



    Video:

    • VGA
    • HDMI
    • DVI



    Mounting:

    • Panel Mount System
    • VESA Mount 75mm x 75mm
    • Side Stud Mounting



    Power:

    • 110~240VAC Power brick



    High Brightness Displays:

    • High Brightness 600 nits display for bright environments
    • High Brightness 1000 nits display for outdoors



    Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

    Mechanical & Environmental
    Touch
    Touch Type Resistive or Projective Capacitive (PCAP)

    Display
    LCD Size 19 inch, 5:4
    Colours 16.2 million
    Resolution 1280 x 1024
    Other Supported Resolutions 640 x 480, 800 x 600, 1024 x 768
    Contrast Ratio 500:1
    Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
    Response Time 11.5 msec
    Brightness (Typical) 350 nits (optional High Brightness 600 nits or 1000 nits)

    Inputs
    Touch USB or RS-232
    Video VGA or HDMI or DVI

    Mechanical & Environmental
    Material 304 Stainless Steel
    Finish Brushed (optional High Polished or Matte Black)
    Connectors IP67 / IP68
    Mounting VESA 100 x 100 (optional Panel Mount or VESA 75x75 or Side Stud Mounting)
    Power Input 10VDC~30VDC (optional 110VAC~240VAC Power brick)
