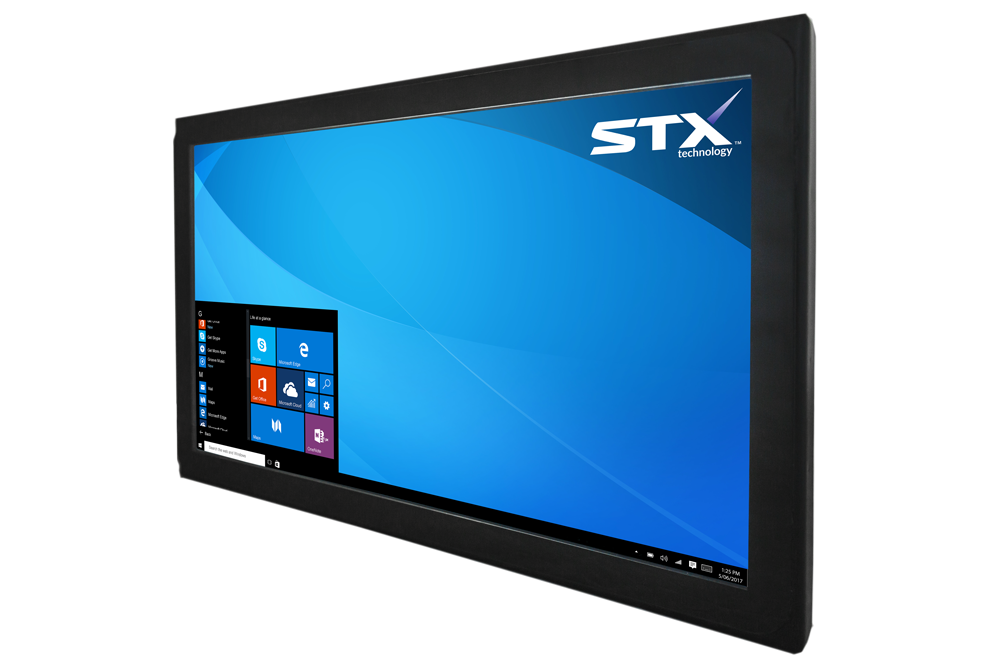

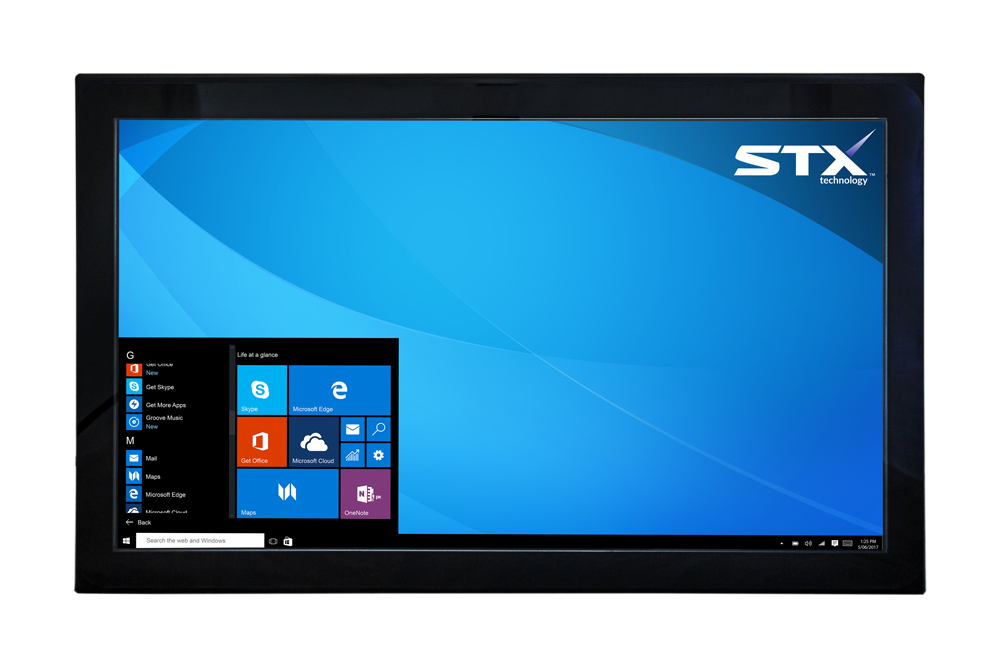

X7343-EX 40 inch Large Format Industrial Touch Extender Monitor

X7340-EX 40 Inch Large Format Industrial Touch Extender Monitor

- 1920 x 1080 (Full HD)
- 43 inch Projective Capacitive Touch (PCAP) Screen
- VGA or DVI or HDMI Video Input
- Runs up to 50M from Computer
- Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
- Tough Aluminium Construction
- Matte Black (Other Colours Available)
- 240VAC or 110VAC (optional DC)
- Warehouse Management
- Production Information Display
- Industrial Information Display
- Staff Information Display
- Designed and Manufactured in New Zealand
- Australian, New Zealand and Global support

Overview
Key Features
Order Options
Accessories
Specifications

Designed specifically for industrial use

Industrial 10VDC~30VDC power input combined with high-quality touch screen and fully sealed stainless-steel enclosure.

Proven in extreme conditions

Strong enclosure, fanless construction and IP67 / IP68 connectors to withstand corrosion, water and dust.

Easy mounting options

Standard mounting for the X7200 is VESA 100. Options include Panel Mount, VESA 75x75 and Side Stud Mounting.

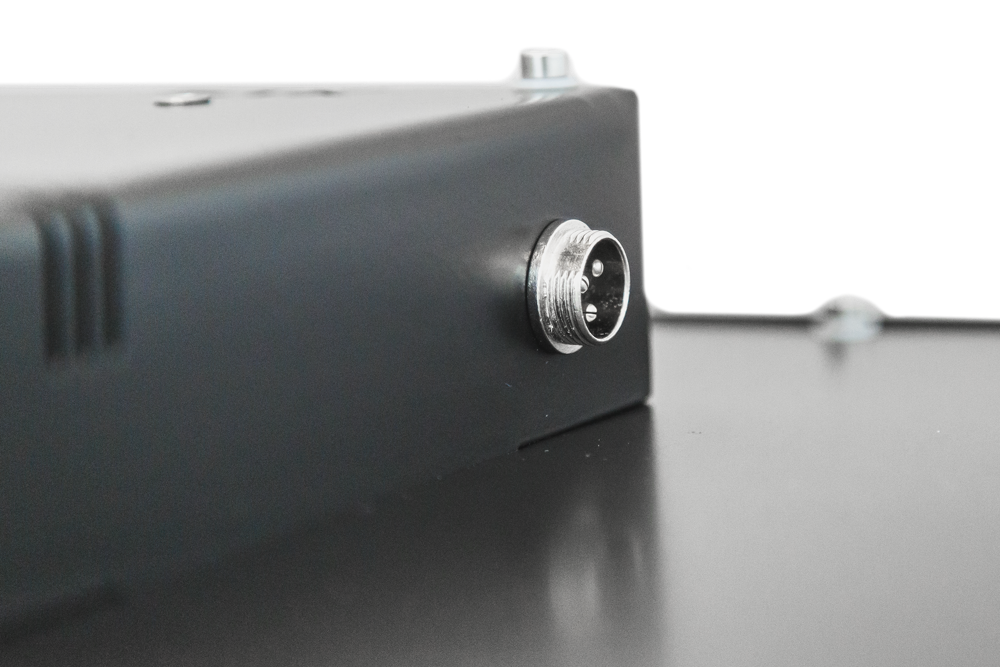

IP Rated industrial connectors

IP67 / IP68 industrial connectors are a reliable solution for environments where humidity, water, dust, dirt, corrosion or debris are involved.

Used across industries

Warehousing, Food Processing, Dairy, Automation & control, Mining, Transportation, Construction, Agriculture, Horticulture, Forestry, Marine and others.

Applications

Can be used for a number of industrial applications including Information display, Safety, CCTV, Data collection, Loading Applications, barcode scanning and others

Contact us today to find out more about the X7340 EX Industrial Touch Panel Extender Monitor and other products.

Designed and Built for Tough Environments
High Quality 43 inch Projective Capacitive Touch (PCAP) Screen
1920 x 1080 (Full HD)
Runs up to 50M from Computer
Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges

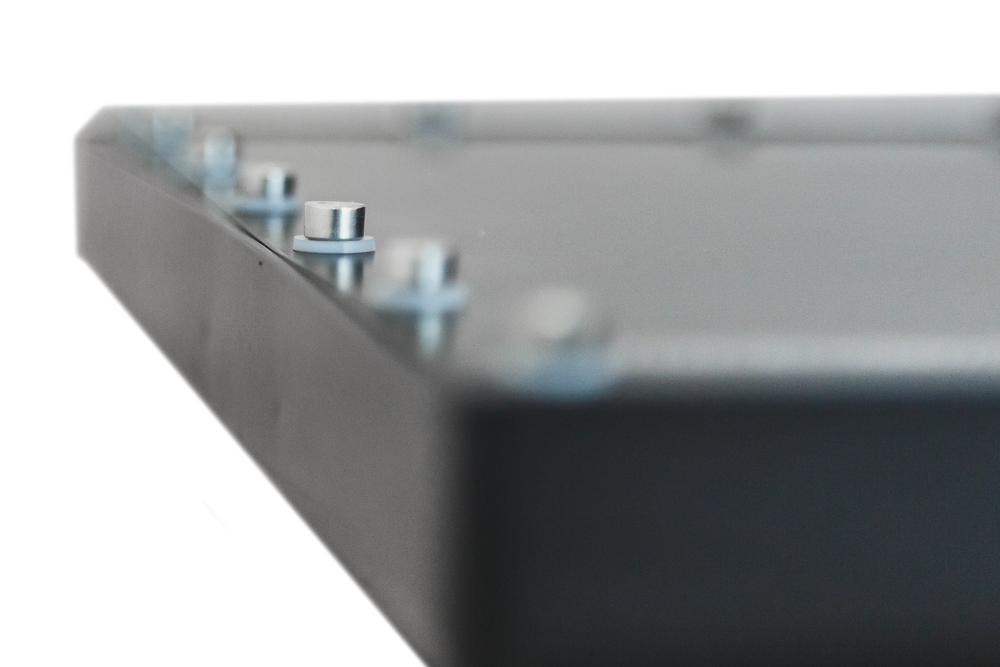

Tough, Strong Aluminium Enclosure
Matte Black (optional: other colours)

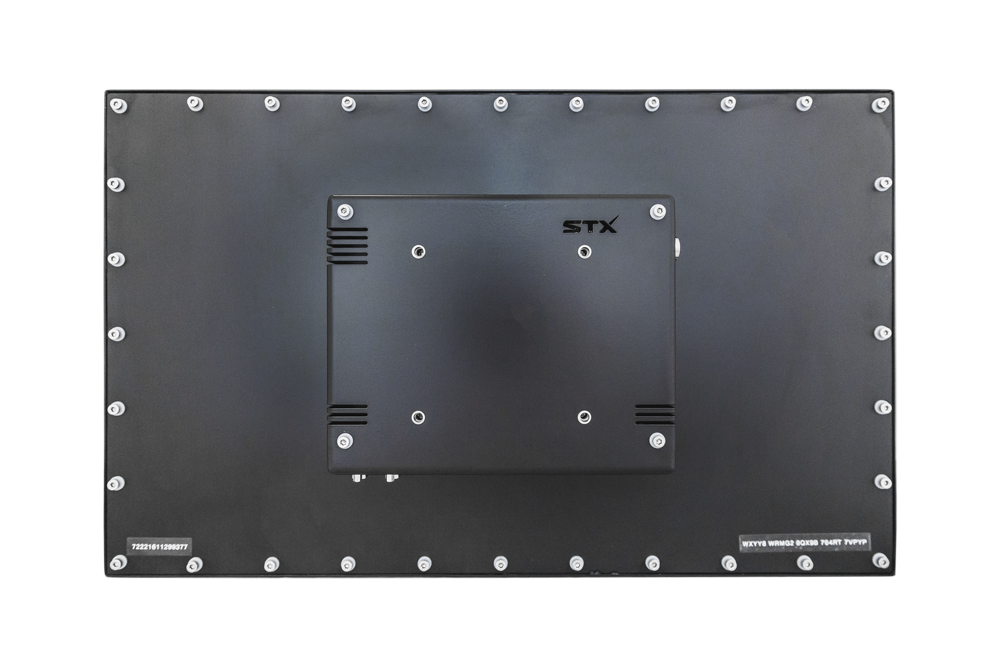

VESA 400mm x 400mm Mounting
Warehouse Management
Production Information Display
Industrial Information Display
Staff Information Display
240VAC or 110VAC Power (optional DC Power)
Designed and Manufactured in New Zealand
Australian, New Zealand and Global support

x7343

X7343-EX-PT

Projective Capacitive Touch (PCAP) Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount 400mm x 400mm

x7343

X7343-EX-NT

No Touch Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount 400mm x 400mm

x7343

Link Here for Industrial Panel PC Range

Other upgrades and mounting options

Materials and Finishes:

316 Stainless Steel
Stainless Highly Polished Finish
Stainless Brushed Finish
Stainless Matte Black Finish
Aluminium & Powder Coated Finish

Mounting:

Panel Mount System
VESA Mount 75mm x 75mm

Video:

VIGA, HDMI or DVI

Power:

110~240VAC Power brick

High Brightness Displays:

High Brightness 600 nits display for bright environments
High Brightness 1000 nits display for outdoors

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Gasket for use with Panel Mount Option
X7300 Power Brick
X7300 Stainless Steel Floor Stand
X7300 Stainless Steel Table Top Stand

Touch
Touch Type	Projective Capacitive Touch (PCAP) Screen

Display
LCD Size	43 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	11.5 msec
Brightness (Typical)	350 nits (optional High Brightness)

Inputs
Power Input	240VAC or 110VAC (optional: DC)
Touch	USB or RS-232 options
Video	VGA or HDMI or DVI options

Mechanical & Environmental
Material	Aluminium
Finish	Matte Black (optional: other colours)
Mounting	VESA 400mm x 400mm (optional: Panel Mount)
