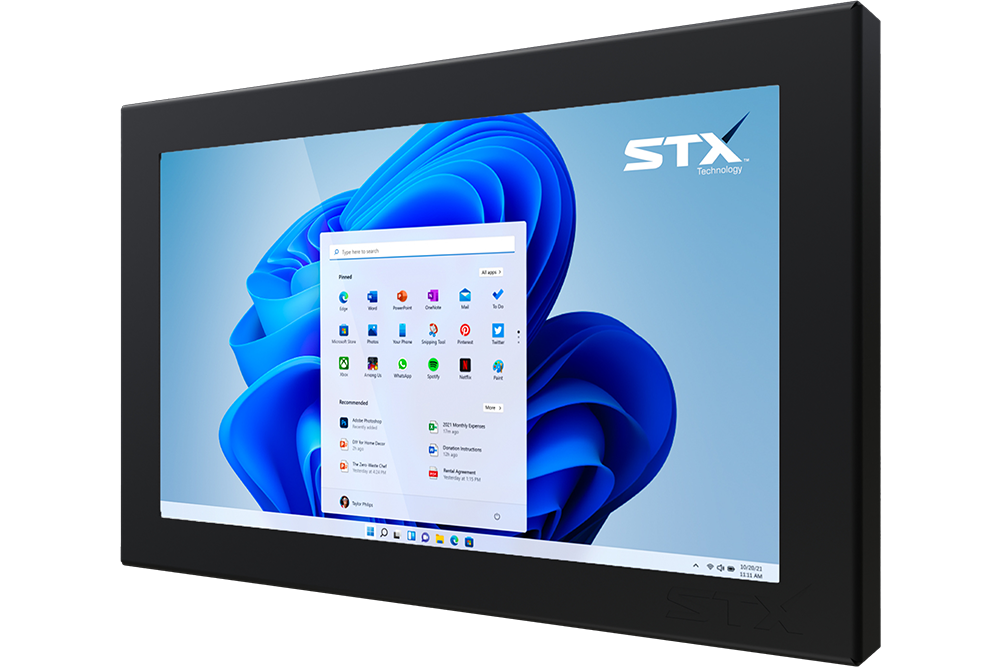

X7318 18.5 Inch Fanless Industrial Touch Panel PC

X7318 18.5 Inch Industrial Panel PC
  • - 1920 x 1080 (Full HD)
  • - 18.5 inch Touch Screen (16:9)
  • - 2.0GHz IntelĀ® Quad Core CPU
  • - Tough Aluminium Construction
  • - Fanless Design
  • - Matte Black (Other Colours Available)
  • - HDMI Output for Second Screen (X4300 Range)
  • - Wide 10~30VDC Power Input
  • - Warehouse Management
  • - Production Information Display
  • - Industrial Information Display
  • - Staff Information Display
  • - Multiple (concurrent) wireless communication options including GPS, Wi-Fi, Bluetooth, 3G & 4G
  • - Designed and Manufactured in New Zealand
  • - Australian, New Zealand and Global support

The STX X7300 Industrial Computer Range is proven in a range of different applications including Warehouse Management, Production Line Status Display, Inventory Pick Status and other similar applications. The Tough Aluminium enclosure combined with 2.0GHz Intel® Quad Core CPU, high quality touch screen, various mounting options, wide 10~30VDC power input (110VAC or 240VAC with power brick), connectivity options and many computer port options create a strong, tough, complete Touch Computing solution for virtually any Industrial application.

STX has a wealth of experience in Industrial, Rugged and Harsh Environment computing with products that have proven themselves in the harshest of environments. The quality and integrity of the X7300 Industrial Panel PC Range ensures sustained reliability and performance.

  • Designed and Built for Tough Environments
  • 2.0GHz Intel® Quad Core CPU
  • High Quality 18.5 inch Touch Screen
  • 1920 x 1080 (Full HD)
  • HDMI Output for Second Screen for (X4300 Monitor Range)
  • Tough, Strong Aluminium Enclosure
  • Matte Black (optional: other colours)
  • VESA 400mm x 400mm Mounting
  • Warehouse Management
  • Production Information Display
  • Industrial Information Display
  • Staff Information Display
  • Wide 10~30VDC Power Input
  • Designed and Manufactured in New Zealand
  • Australian, New Zealand and Global support



Standard

Configurations

Performance

Configurations



Industrial Panel PC



 X7318-C2-RT

  • Resistive Touch Screen
  • 350 nits Display
  • 2.0GHz Intel® Quad Core CPU
  • 4GB DDR3 RAM
  • 120GB SSD
  • Aluminium Enclosure
  • VESA Mount 100mm x 100mm
  • 10~30VDC power input



X7318-C5-RT

  • Resistive Touch Screen
  • 350 nits Display
  • 2.8GHz Intel® Core™ i5 CPU - i5-6200U
  • 4GB DDR4 RAM
  • 120GB SSD
  • Aluminium Enclosure
  • VESA Mount 100mm x 100mm
  • 10~30VDC power input



Industrial Panel PC - PCAP



X7318-C2-PT

  • Projective Capacitive Touch Screen
  • 350 nits Display
  • 2.0GHz Intel® Quad Core CPU
  • 4GB DDR3 RAM
  • 120GB SSD
  • Aluminium Enclosure
  • VESA Mount 100mm x 100mm
  • 10~30VDC power input



X7318-C5-PT

  • Projective Capacitive Touch Screen
  • 350 nits Display
  • 2.8GHz Intel® Core™ i5 CPU - i5-6200U
  • 4GB DDR4 RAM
  • 120GB SSD
  • Aluminium Enclosure
  • VESA Mount 100mm x 100mm
  • 10~30VDC power input




RAM Upgrade:

  • 8GB DDR3



RAM Upgrade:

  • 8GB, 16GB, 32GB DDR4






Other upgrades and mounting options





Hardware:

  • 256GB or larger SSD
  • 3G/4G
  • GPS



Materials and Finishes:

  • Matte Black Finish (other colours available)



Mounting:

  • Panel Mount System
  • VESA Mount 75mm x 75mm



Power:

  • 110~240VAC Power brick



High Brightness Displays:

  • High Brightness 600 nits display for bright environments
  • High Brightness 1000 nits display for outdoors

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Display
LCD Size 18.5 Inch, 16:9
Colours 16.2 million
Resolution 1920 x 1080
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 14.5 msec
Brightness (Typical) 350 nits (optional High Brightness 600 nits or 1000 nits)

System
CPU 2.0GHz Intel® Quad Core CPU (optional 2.8GHz Intel® Core™ i5 CPU)
System Memory 4 GB DDR3 (optional 8GB DDR3 or 8GB, 16GB, 32GB DDR4 with i5 CPU)
Hard Drive 120GB SSD (optional 256GB or larger SSD)
Operating systems Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux, Android)
Wi-Fi Wi-Fi and Bluetooth

Rear I/O
Serial Port 2 x RS-232 (optional Up to 6)
Ethernet 2 x RJ-45
USB 1 x USB 2.0 1 x USB 3.0 (optional up to 4 USB 2.0)
Video Out (Slave Screen - X4300 Monitor Range) VGA & HDMI

Mechanical & Environmental
Width 465mm
Height 291mm
Display Area Width 409mm
Display Area Height 230mm
Material Aluminium
Finish Matte Black (optional: other colours)
Mounting VESA 400mm x 400mm (optional: Panel Mount)
Power Input 10~30VDC (optional 110~240VAC Power brick, other voltages)
Temperature Control Fanless

Options
3G Optional 3G or 4G and GPS
