X7222-PT Industrial Panel PC - Fanless Computer For Harsh Environments with Projective Capacitive (PCAP) Touch Screen
X7222-PT Industrial Panel PC - Fanless Computer For Harsh Environments with Projective Capacitive (PCAP) Touch Screen X7222-RT Industrial Panel PC - Matte Black Finish X7222-RT Industrial Panel PC - Fanless Computer For Harsh Environments with Resistive Touch Screen X7200 Industrial Panel PC - Fanless Touch Screen Computer For Harsh Environments X7200 Industrial Panel PC - Fanless Touch Screen Computer For Harsh Environments X7200 Industrial Panel PC - Fanless Touch Screen Computer For Harsh Environments

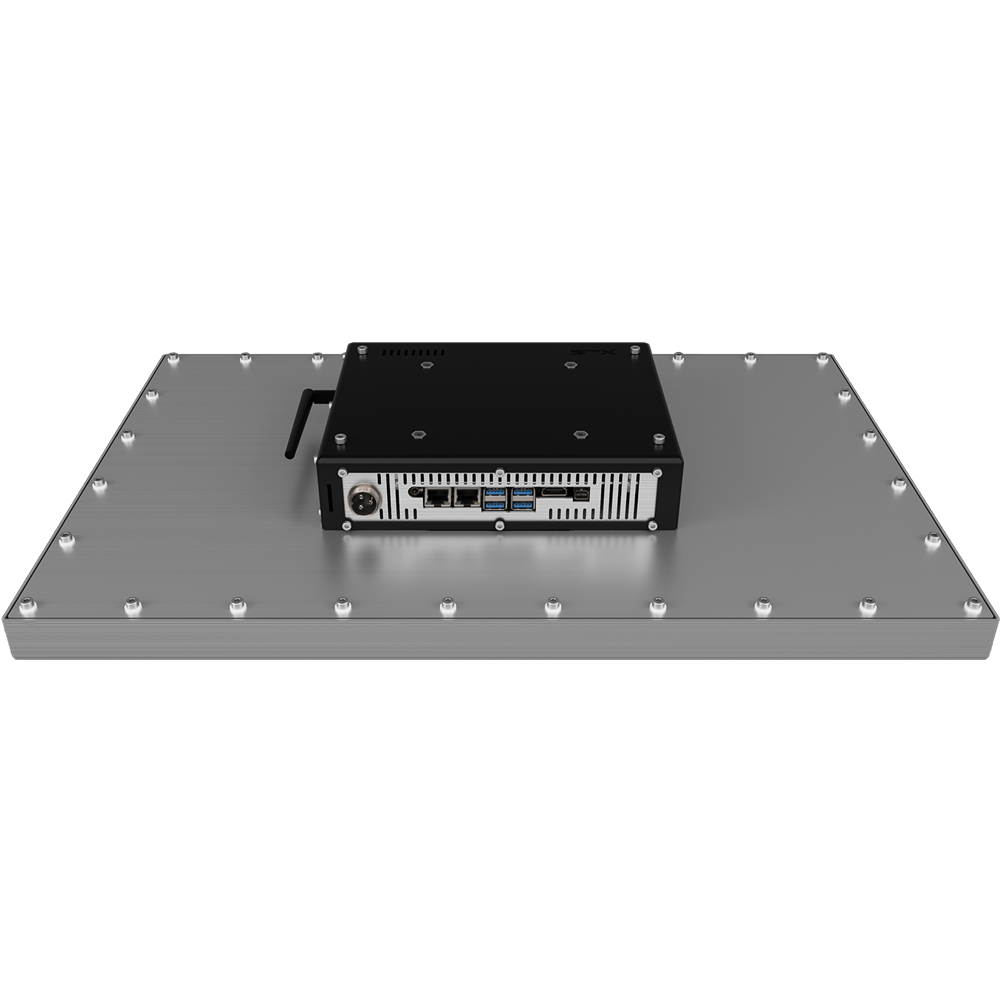

X7222 21.5 Inch Industrial Touch Panel PC

  • 21.5 Inch Touch Screen
  • 1920 x 1080 (Full HD)
  • 16:9 widescreen display
  • TPM2.0 - Windows 11 Compatible
  • 304 Stainless Steel
  • Fanless Design
  • 10VDC~30VDC Power Input

    • industrial panel pc

    		 proven

    vesa or panel mount

    Designed specifically for industrial use

    • Industrial 10VDC~30VDC power input
    • High quality touch screen



    Proven in tough conditions

    • Stainless steel enclosure
    • Fanless construction



    Easy mounting options

    • VESA
    • Panel mount




    ports





    Ports

    • 2 x RS232
    • 1 x VGA
    • 1 x HDMI
    • 2 x Ethernet
    • 2 x USB







     industrial use



    Used across industries


    • Warehousing
    • Food Processing
    • Dairy
    • Mining
    • Transportation
    • Construction
    • Agriculture
    • Horticulture
    • Forestry
    • Marine

     application

    Applications

    • Information Display
    • Safety
    • CCTV
    • Data
    • Collection
    • Loading Applications
    • Barcode Scanning





    STX Technology has extensive experience in the design and manufacture of industrial, tough environment computing with proven products in an array of rugged environments. For an industrial touch computing solution for virtually any application, the quality and integrity of the X7200 range ensures reliability and performance.



    Contact us today  to find out more about the X7222 Fanless Industrial Touch Panel PC and other products.

    • Designed and built for tough environments
    • Resistive or Projective Capacitive (PCAP) touch screen
    • Multiple CPU options
    • Strong stainless steel enclosure
    • Fanless design, doesn’t suck in dust and other particles
    • Brushed or highly polished finish
    • VESA or panel mount
    • Wide 10~30VDC power input
    • Designed and manufactured in New Zealand
    • New Zealand, Australian and Global support

    panel pc

    resisitive touch

    Resistive



    pcap

    Projective Capacitive

    X7222-C4-RT

    • Intel® Celeron® 4205U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input



    X7222-C4-PT

    • Intel® Celeron® 4205U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input

      X7222-C5-RT

    • Intel® Core™ i5-8265U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input



    X7222-C5-PT

    • Intel® Core™ i5-8265U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input

     X7222-C7-RT

    • 3.5 GHz Intel® core™ i7 -7500U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input



    X7222-C7-PT

    • 3.5 GHz Intel® core™ i7 -7500U
    • 8GB DDR4 RAM
    • 120GB SSD
    • 304 stainless steel
    • VESA or panel mount
    • 10~30VDC power input

    Options



    Ram Upgrade:

    • 8GB
    • 12GB
    • 20GB





    Components:

    • 256GB or larger SSD
    • 3 Ethernet 1000 Mbp ports
    • 3G/4G
    • GPS
    • CANBus

    High Brightness Displays:

    • 600 nits for bright environments
    • 1000 nits for outdoors





    Materials and Finishes:

    • 304 stainless steel
    • 316 stainless steel
    • Brushed
    • Highly polished
    • Matte black



    resisitive touch






    Link Here for Monitor Range

    Click here and link through to accessories

    Accessories include wall mounting brackets, IP68 keyboards and keyboard mounting accessories

    Link Here to Accessories
    Touch
    Touch Type Resistive or Projective Capacitive (PCAP)

    Display
    LCD Size 21.5, 16:9
    Colours 16.2 million
    Resolution 1920 x 1080
    Other Supported Resolutions 640 x 480, 800 x 600
    Contrast Ratio 500:1
    Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
    Response Time 14.5 msec
    Brightness (Typical) 350 nits

    System
    CPUIntel Celeron 4205U / Intel Core™ i5-8265U / Intel Core™ i7-8565U
    System Memory8GB DDR4 (Optional 16GB, 24GB, 40GB)
    Hard Drive 120GB SSD
    Operating systems Windows 10 (optional Windows 11, Windows 8.1, Windows 7, Windows XP, Linux, Android)
    TPMTPM2.0 / TPM1.0 (Trusted Platform Module 2.0)

    Rear I/O
    Serial Port 2 RS-232 (optional up to 6)
    Ethernet 2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
    USB 1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
    Connectors 3 Pin Power Connector

    Mechanical & Environmental
    Material 304 or 316 stainless steel
    Finish Brushed
    Mounting VESA or panel mount
    Power Input 10~30VDC (optional 110~240VAC Power brick, other voltages)
    Temperature Control Fanless

    Connectivity Wi-Fi & Bluetooth
      4G & GPS
      High Speed Serial RS232/RS422/RS485 (to 3M Baud)
      CANBus
