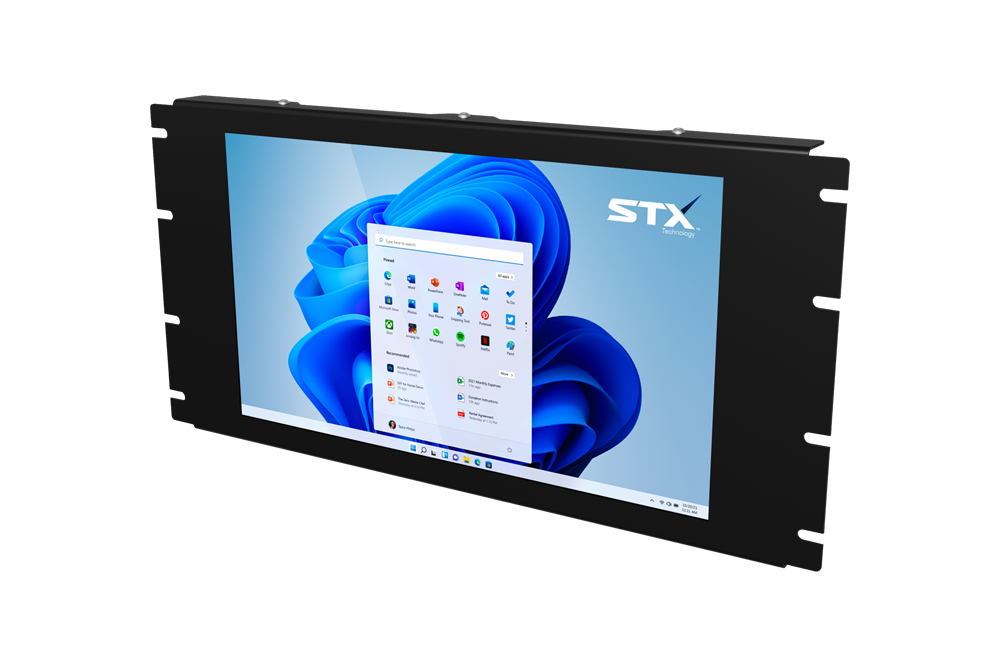

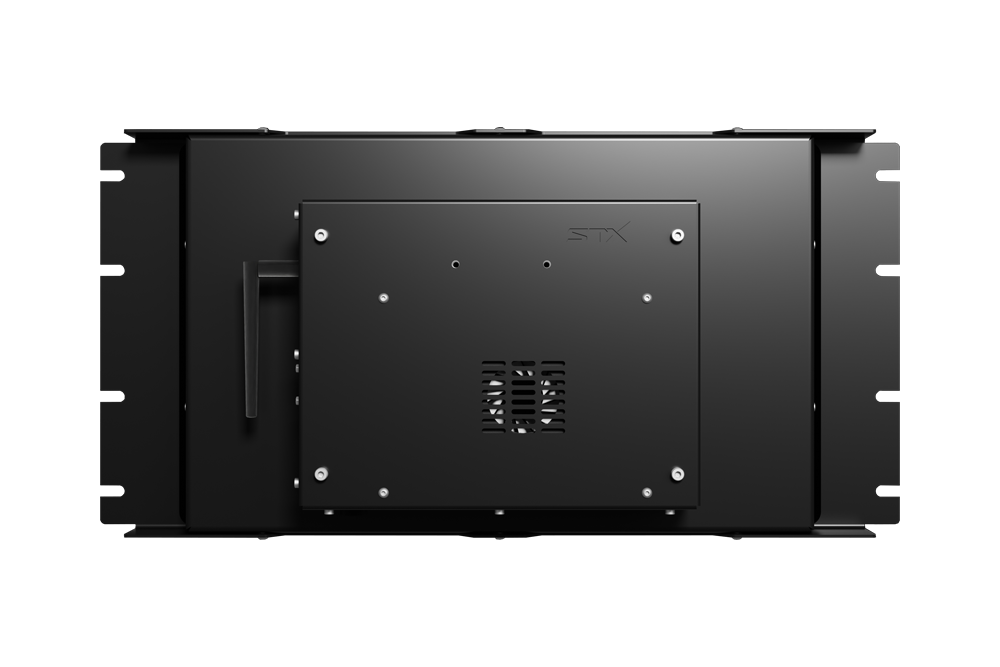

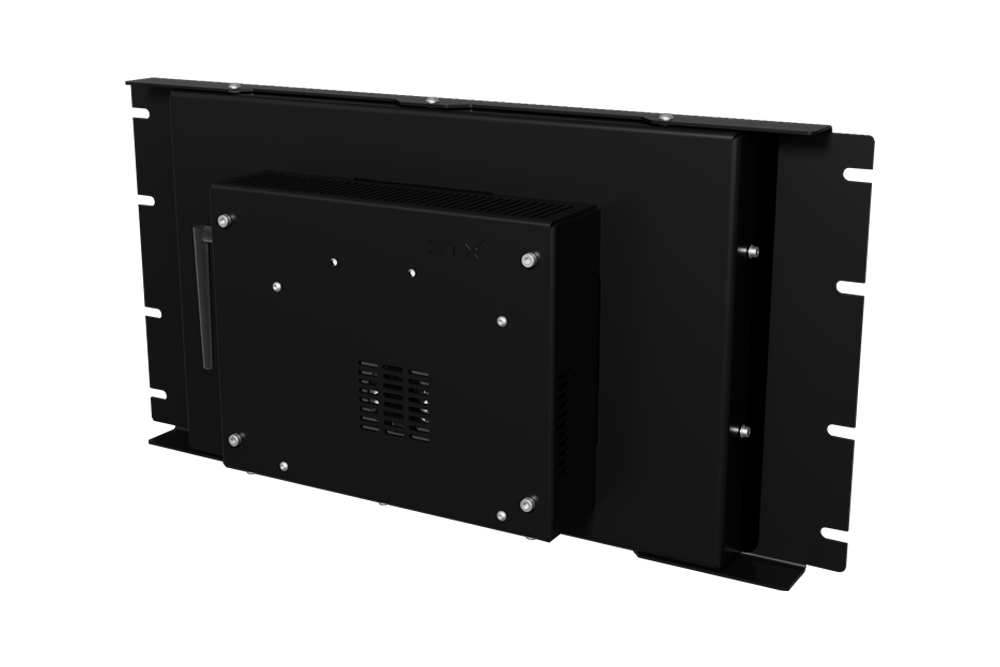

X5416 15.6 Inch Rack Mount PC

15.6 inch Touch Screen
Resolution 1920x1080 16:9
Intel® Generation 11 CPU | ARM RK3588S
TPM 2.0
Windows | Linux | Android | Monitor
Tough Sleek Construction
All-In-One PC
10VDC~30VDC Power Input
19" Standard Rackmount
5th Generation Product (G5)

Overview
Key Features
Order Options
Specifications PC
Specifications Monitor
Accessories
Similar Products

industrial aluminium panel pc

vesa or panel mount

Engineered Tough for Extreme Environments

10VDC~30VDC Power Input
Responsive Touch Screen
Rugged Steel Enclosure

Proven in Industrial Environments

Carbon Steel Enclosure

Easy Mounting Options

Rack Mount

ports

application

Ports

1 x Power
2 x Ethernet 1000Mbps
4 x USB 3.0
1 x HDMI
1 x MiniDP

Used Across Industries

Warehousing
Food Processing
Dairy
Mining
Process Control

Automation & Control
Plant Automation
Industrial Control
Construction

Applications

Information Display
Safety
Data Acquisition
Networking
SCADA/MES Applications

Defense
Avionics
Energy
Loading Applications

The X5400 Industrial Rack Mount PC is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

Engineered and Built for Tough Environments
Resistive or Projective Capacitive (PCAP) Touch Screen
Intel® Generation 11 CPU
Celeron® | Core™ i5 | Core™ i7 | ARM RK3588S CPU Options
Solid Steel Construction
19" Standard Rack Mount (EIA-310)
10~30VDC Power Input
Industrial SSD Hard Drive
Network Boot (PXE Boot)
Comprehensive Support

15.6 inch Resistive Touch

STX Technology X7200 Stainless Steel Resistive Touch Panel PC

Touch Panel PC

X5416-C4-RT

Intel® Celeron® 6305U

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-C5-RT

Intel® Core™ i5-1135G7

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-C7-RT

Intel® Core™ i7-1165G7

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-A3-RT

ARM RK3588S

8GB DDR4 RAM

128GB EMMC

Android 13

Touch Panel Monitor

X5416-M-RT

HDMI | VGA | DP

USB Touch

X5416-M-RT-KVM

HDMI | DP & USB Touch

Up to 100M over CAT6

15.6 inch Projective Capacitive Touch (PCAP)

STX Technology X7200 Stainless Steel PCAP Touch Panel PC

Touch Panel PC

X5416-C4-PT

Intel® Celeron® 6305U

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-C5-PT

Intel® Core™ i5-1135G7

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-C7-PT

Intel® Core™ i7-1165G7

8GB DDR4 RAM

120GB SSD

Windows | Linux

X5416-A3-RT

ARM RK3588S

8GB DDR4 RAM

128GB EMMC

Android 13

Touch Panel Monitor

X5416-M-PT

HDMI | VGA | DP

USB Touch

X5416-M-PT-KVM

HDMI | DP & USB Touch

Up to 100M over CAT6

Standard Features

Carbon Steel
19" Rack Mount
10~30VDC power input
Network Boot (PXE Boot)

Optional Features

Display Brightness:

High Brightness 600nits
High Brightness 1000nits

Power:

10~30VDC power input

System:

16GB | 24GB | 40GB DDR4 RAM
256GB | 512GB | 1TB Industrial SSD
Up to 4 Ethernet 1000Mbp
Up to 8 RS232 | RS422 | RS485
CAN bus
High Speed Serial (to 3M Baud)
WiFi Dual Band
Bluetooth
3G / 4G or 4G / 5G

Material:

Steel

Mounting:

19" Standard Mount

Finish:

Carbon Steel Brushed
Steel Electro Polished
Matte Black

STX Technology X5400 Stainless Steel Resistive Touch Monitor

Click Here to see the X5400 Rack Mount Monitor Range

Touch
Touch Type	Resistive Touch Projective Capacitive Touch

Display
LCD Size	15.6 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080 Full HD
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° , Vertical: 70°
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional 600 or 1000 nits)

System
CPU	Intel® Celeron® 6305U \| Intel® Core™ i5-1135G7 \| Intel® Core™ i7-1165G7 \| ARM RK3588S
System Memory	8 GB (optional 16GB \| 24GB \| 40GB)
Hard Drive	128GB Industrial SSD (optional 256GB \| 512GB)
Operating systems	Windows 10 \| Windows 11 \| Linux \| Android 13
Boot Options	Network Boot (PXE Boot)

Ports
USB	4 x USB 3.0
Connectivity	2 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps)
Connectivity options	WiFi Dual Band (Optional) Bluetooth (Optional) 3G / 4G LTE \| 4G / 5G (Optional)
Video Out	1 x HDMI 1 x mini DP
Audio Out	1 x 3.5 Jack
Serial options	up to 8 x RS232 (Optional) RS485 or RS422 (Optional) CAN Bus (Optional) High Speed Serial RS232/RS422/RS485 (to 3M Baud) (Optional)

Mechanical & Environmental
Material	Carbon Steel
Finish	Powder Coated
Mounting	19" Rack mount(EIA-310)
Connectors	3 Pin Power Connector
Power Input	10VDC~30VDC (optional 110~240VAC)

Accessories
Mounting	Rack Mount

Touch
Touch Type	Resistive Touch Projective Capacitive Touch

Display
LCD Size	15.6 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080 Full HD
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° , Vertical: 70°
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional 600 or 1000 nits)

Monitor Option
Video Input	HDMI / DVI / VGA / Display Port options
Touch	USB Touch (optional RS232 Serial)

KVM Monitor Option
Video Input	HDMI / VGA / Display Port options
Touch	USB Touch (optional RS232 Serial)
Single CAT6 Cable	Video & Touch up to 100M

Mechanical & Environmental
Material	Carbon Steel
Finish	Powder Coated
Mounting	19" Rack mount(EIA-310)
Connectors	3 Pin Power Connector
Power Input	10VDC~30VDC (optional 110~240VAC)

Accessories
Mounting	Rack Mount

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.

	STX Technology Stainless Steel Floor Stand
	STX Technology Stainless Tabletop Stand
	IP68 Water resistant Silicone Keyboard


	Click Here to find all of our Accessories for Touch Panel PCs
