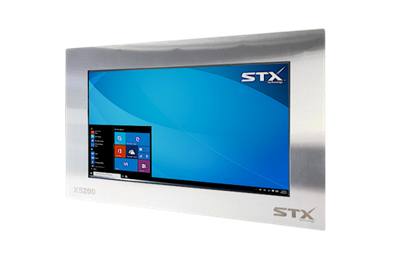

X5218 18.5 Inch Industrial Touch Panel PC

- 18.5 Inch Touch Screen
- 1920 x 1080 (Full HD)
- 16:9 widescreen display
- TPM2.0 - Windows 11 Compatible
- 304 Stainless Steel
- 10VDC~30VDC Power Input
-Panel Mount

Overview
Key Features
Order Options
Accessories
Specifications
Similar Products

industrial use

Designed specifically for industrial use

10VDC~30VDC power input
High quality touch screen

Proven product

Proven in rugged conditions

Stainless Steel enclosure

Easy mounting options

Panel mount

industrial connectors

IP Rated Industrial Connectors

2 x RS232
1 x VGA
1 x HDMI
2 x Ethernet
2 x USB

Industrial Use

Used across industries

Warehousing
Food Processing
Dairy
Mining
Transportation

Construction
Agriculture
Horticulture
Forestry
Marine

applications

Applications

Information Display
Safety
Data

Collection
Loading Applications
Barcode Scanning

Contact the STX Team today to find out more about the X5218 Industrial Touch Panel PC and other products.

Designed and built for tough environments
Resistive touch screen
CPU options
Strong Stainless Steel enclosure
Brushed or highly polished finish
10~30VDC power input
Panel mount system
Australian support

Resistive	X5218 - C4 - RT Intel® Celeron® 4205U 8GB DDR4 RAM 120GB SSD Panel mount 10~30VDC power input	X5218 - C5 - RT Intel® Core™ i5-8265U 8GB DDR4 RAM 120GB SSD Panel mount 10~30VDC power input	X5218 - C7 - RT Intel® Core™ i7-8565U 8GB DDR4 RAM 120GB SSD Panel mount 10~30VDC power input
		OPTIONS
Ram Upgrade: 16GB 24GB 40GB	Components 256GB or larger SSD3 RS232, HDMI & VGA ports Ethernet 1000 Mbp ports 3G/4G GPS CAN bus	High Brightness Displays 600 nits for bright environments 1000 nits for outdoors	Finishes 304 Stainless steel 316 Stainless steel Brushed Highly polished Matte black
	Link Here for Monitor Range

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Gasket for use with Panel Mount Option
X5200 60W Power Brick - X5200-PB603P

Touch
Touch Type	Resistive

Display
LCD Size	18.5 Inch, 16:9
Colours	16.2 million
Resolution	1024 x 768
Other Supported Resolutions	640 x 480, 800 x 600
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional High Brightness 600 nits or 1000 nits)

System
CPU	Intel Celeron 4205U / Intel Core™ i5-8265U / Intel Core™ i7-8565U
System Memory	8GB DDR4 (Optional 16GB, 24GB, 40GB)
Hard Drive	120GB SSD (optional 256GB or larger SSD)
Operating systems	Windows 10 (optional Windows 11, Windows 8.1, Windows 7, Windows XP, Linux, Android)
TPM	TPM2.0 / TPM1.0 (Trusted Platform Module 2.0)

Rear I/O
Serial Port	2 RS-232 (optional up to 6)
Ethernet	2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
USB	1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
Connectors	3 Pin Power Connector

Mechanical & Environmental
Material	304 Stainless Steel (optional 316 Stainless Steel)
Finish	Brushed (optional Highly Polished or Matte Black)
Mount	Panel Mount
Power Input	10~30VDC (optional 110~240VAC Power brick, other voltages)

Options
Connectivity	Wi-Fi & Bluetooth
	4G & GPS
	High Speed Serial RS232/RS422/RS485 (to 3M Baud)
	CAN bus
