XCCK15-P 15 Inch Outdoor kiosk with printer

Interactive touchscreen outdoor kiosk with printer
  • - Engineered specifically for outdoor use
  • - 15 inch touch screen
  • - Durable and resistant to user damage
  • - Aluminium enclosure
  • - Fully sealed
  • - Fanless design
  • - 2.0GHz IntelĀ® Quad Core CPU
  • - Wide power - 10~30VDC input
  • - Camera
  • - Speaker
  • - Dual microphone
  • - Printer with slide out tray

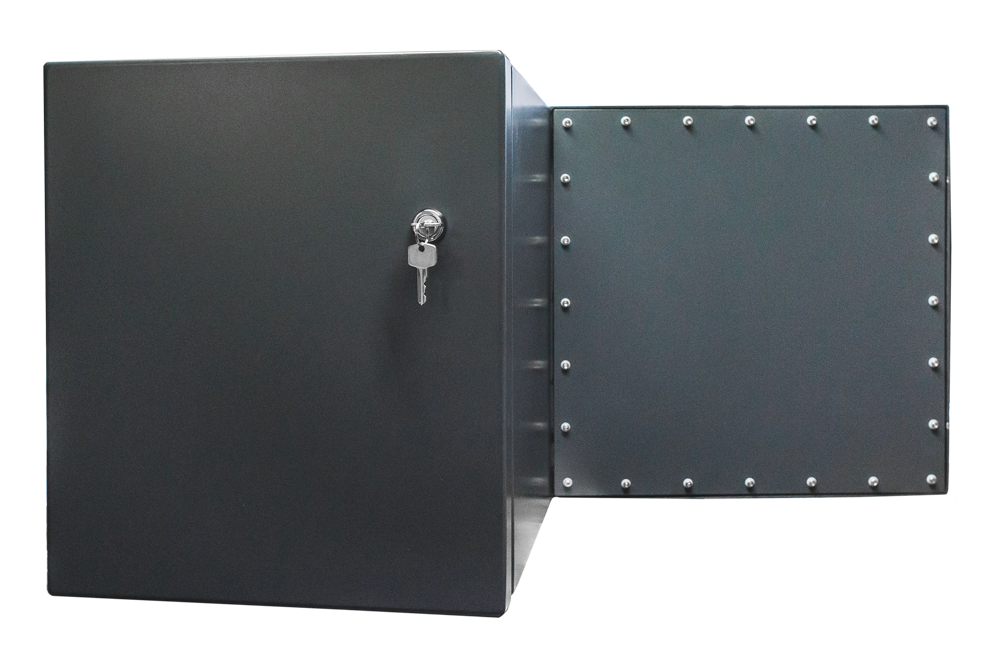

  • - Rear door with lock
  • - Shroud
  • - Multiple colour and branding options
  • - Wireless communication options

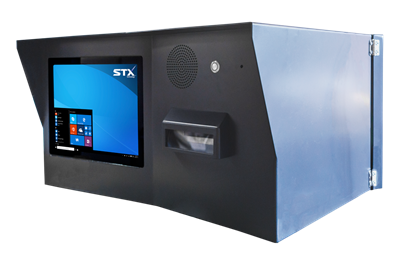

The XCCK15-P outdoor kiosk with printer is a complete solution for self-service applications. Used for security and registration purposes, these units can be installed at the entrance and collect information from visitors or vehicles entering the site.

Equipped with a 15 inch high-quality industrial touch screen, printer, speaker, microphone and camera, the XCCK15-P provides effective operation. All these features are packed into a tough aluminium enclosure offering a high level of protection against corrosion, dust, dirt, water, rain, humidity and temperature extremes. The XCCK15-P is proven in reliable continuous 24/7 operation.

There are multiple colour and branding options available for the XCCK15-P kiosk to fit it seamlessly into your current environment.

  • Engineered specifically for outdoor use
  • Tough aluminium enclosure
  • Durable and resistant to user damage
  • High-quality industrial 15 inch touch screen
  • High-brightness 600 nits display (optional 900 nits)
  • Multiple colour and branding options
  • 2.0GHz Intel® Quad Core CPU
  • Camera
  • Speaker
  • Dual microphone
  • Printer with slide out tray for easy media change
  • Rear door with a lock
  • Shroud for extra protection
  • Wireless communication options including GPS, Wi-Fi, Bluetooth, 3G/4G
  • Resistant to UV light and temperature extremes
  • Wide power - 10~30VDC input and other options
Display
LCD Size 15 inch, 4:3
Colours 16.2 million
Resolution 1024 x 768
Other Supported Resolutions 640 x 480, 800 x 600
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 14.5 msec
Brightness (Typical) 600 nits (optional 900 nits)

System
CPU 2.0GHz Intel® Quad Core CPU
System Memory 4 GB (optional 8GB)
Hard Drive 120GB SSD (optional 256GB or larger SSD)
Operating systems Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux)

Connectivity
Wi-Fi Wi-Fi & Bluetooth
Power Input 10~30VDC (optional 110~240VAC and other voltages)
Communication Camera, speaker & dual microphone

Mechanical & Environmental
Material Aluminium
Finish Colour of your choice
Mounting Pole
Temperature Control Fanless
Printer Built-in with slide-out tray

Options
3G Optional 3G/4G
