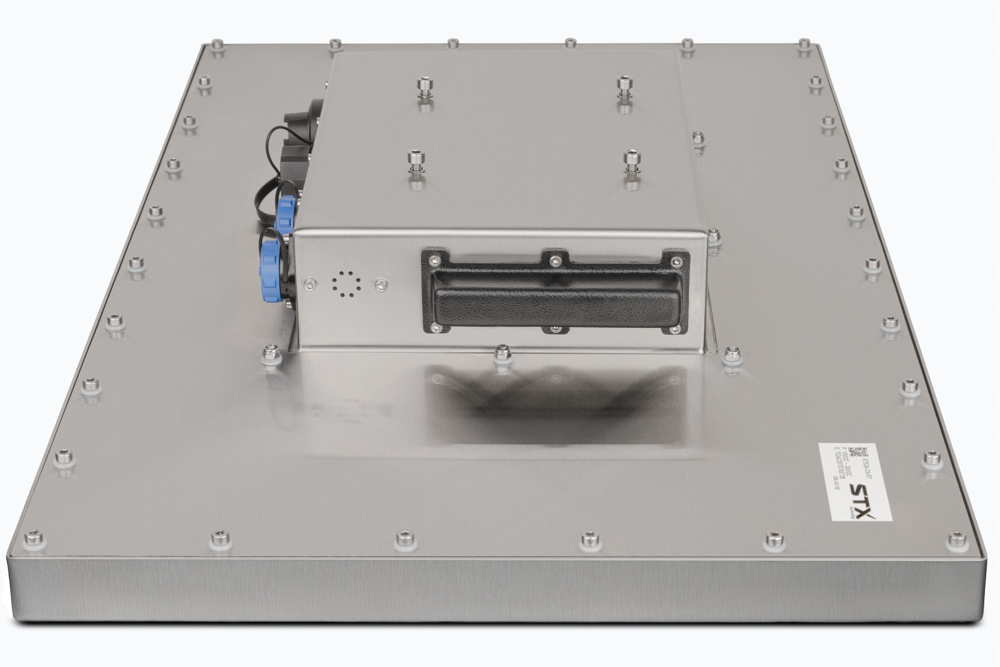

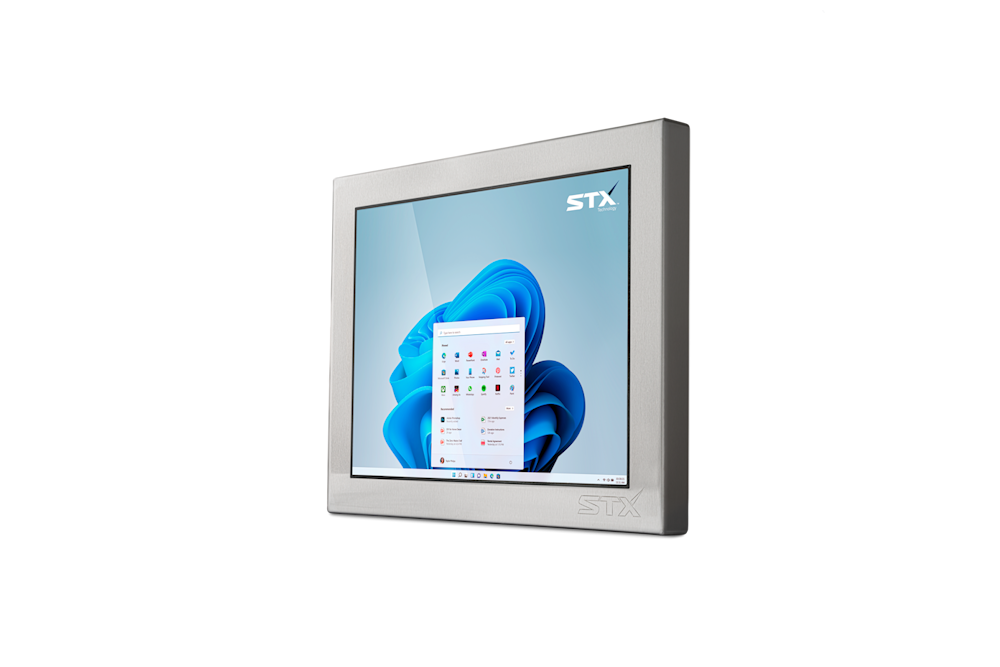

X7508 8 Inch Industrial Touch Panel PC

8.4 Inch Touch Screen

Multiple CPU options

Fanless Design

Fully Sealed Stainless Steel Enclosure

IP66 / IP69K

IP67 / IP68 industrial connectors

10VDC~30VDC Power Input

3rd Generation Product

Overview
Key Features
Order Options
Accessories
Specifications

The STX X7500 Industrial Touch Panel PC Range is proven in a range of different applications including Industrial, Agriculture, Horticulture, Warehouse and Forestry Industries. The Fully Sealed Stainless Steel enclosure combined with 2.4GHz Intel® Quad Core CPU, IP67 / IP68 connectors, wide 10~30VDC power input (110VAC or 240VAC with power brick), connectivity options and many computer port options create a strong, tough, complete Industrial Touch Panel PC computing solution for the rugged, tough dirty and dusty environments.

STX has a wealth of experience in Industrial, Rugged and Harsh Environment computing with products that have proven themselves in the harshest of environments. The quality and integrity of the X7500 Range ensures sustained reliability and performance.

Designed and Built for Tough Environments
High Quality 8.4 inch Resistive or PCAP Touch screen
Multiple CPU options
Fully Sealed Stainless Steel Enclosure
IP66 / IP69K
IP67 / IP68 industrial connectors
Fanless design, doesn’t suck in dust and other particles
Standard Brushed, Highly Polish or Matte Black Finish
VESA Mounting
Wide 10~30VDC Power Input
Global support

Standard

Configurations

Performance

Configurations

X7508-C4-RT

Resistive Touch Screen
350 nits Display
2.4GHz Intel® Quad Core CPU
4GB DDR3 RAM
120GB SSD
Fully Sealed Stainless Steel Enclosure
304 Stainless Steel
Stainless Brushed Finish
VESA Mount 100mm x 100mm
10~30VDC power input

X7508-C5-RT

Resistive Touch Screen
350 nits Display
2.8GHz Intel® Core™ i5 CPU - i5-6200U
4GB DDR4 RAM
120GB SSD
Fully Sealed Stainless Steel Enclosure
304 Stainless Steel
Stainless Brushed Finish
VESA Mount 100mm x 100mm
10~30VDC power input

RAM Upgrade:

8GB DDR3

RAM Upgrade:

8GB, 16GB, 32GB DDR4

Other upgrades and mounting options

Hardware:

256GB or larger SSD
3G/4G
GPS

Materials and Finishes:

316 Stainless Steel
Stainless Highly Polished Finish
Stainless Matte Black Finish

Mounting:

Panel Mount System
VESA Mount 75mm x 75mm

Power:

110~240VAC Power brick

High Brightness Displays:

High Brightness 600 nits display for bright environments
High Brightness 1000 nits display for outdoors

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

Gasket for use with Panel Mount Option
X7500 Power Brick 60W IEC to 4-pin IP67 Connector - X7500-PB604P
X7500 Stainless Steel Floor Stand
X7500 Stainless Steel Table Top Stand

Touch
Touch Type	Resistive or Projected Capacitive (PCAP)

Display
LCD Size	8.4 Inch, 4:3
Colours	16.2 million
Resolution	800 x 600
Other Supported Resolutions	640 x 480
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional High Brightness 600 nits or 1000 nits)

System
CPU	2.4GHz Intel® Quad Core CPU (optional 2.8GHz Intel® Core™ i5 CPU)
System Memory	4 GB DDR3 (optional 8GB DDR3 or 8GB, 16GB, 32GB DDR4 with i5 CPU)
Hard Drive	120GB SSD (optional 256GB or larger SSD)
Operating systems	Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux, Android)
Wi-Fi	Wi-Fi and Bluetooth

Rear I/O
Ethernet	1 x RJ-45
USB	1 x USB
Connectors	IP67 / IP68

Mechanical & Environmental
Material	304 Stainless Steel (optional 316 Stainless Steel)
Finish	Brushed (optional Highly Polished or Matte Black)
Enclosure	Fully Sealed
Mounting	VESA 100 x 100 (optional Panel Mount or VESA 75x75 or Side Stud Mounting)
Power Input	10~30VDC (Wider and other input voltages available)
Temperature Control	Fanless

Options
3G	Optional 3G or 4G and GPS
