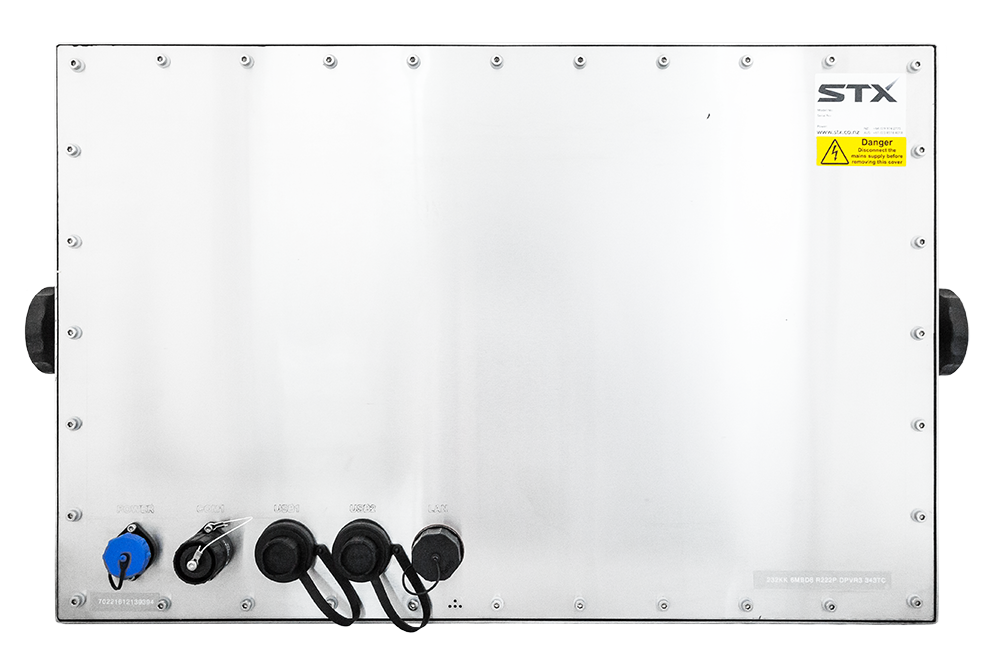

X7032 32 Inch Harsh Environment Touch Monitor

  • 32 inch Touch Screen
  • 1920 x 1080 Full HD resolution
  • 16:9 widescreen display
  • Large format
  • IP66 / IP69K
  • Fully sealed enclosure
  • IP67 / IP68 industrial connectors
  • 230VAC Power Input
  • 3rd Generation Product
  • The X7000 Stainless Steel Harsh Environment Touch Monitor Range is Engineered Tough using STX’s Proven Harsh Environment Technologies and Experience. This Tough and Rugged unit with Touch Screen is a standard off-the-shelf product which has a large number of options to suit virtually any environment.

    Designed and Manufactured in New Zealand, the X7000 Touch Screen Monitor has Demonstrated Reliability across a number of different applications in Australia, New Zealand and around the world. This includes Meat Production, Fish Production, Food Processing, Dairy Industry, Cow Sheds, & Mining and many other Rugged Harsh Environments.

    STX’s Extensive Experience in Harsh Environment Computing, Touch Solutions and Industrial Applications ensure the X7000 Harsh Environment Monitors are Built to Perform in Rugged Demanding Environments.

    The X7000 Monitor Range is manufactured using High Quality Industrial Components including IP67 / IP68 connectors which offer a high level of resistance against water and dust ingress. The X7000 also has a sacrificial touch membrane to protect the touch sensor and can be easily replaced in the case of damage from knives and other abrasives.

    STX’s wealth of experience in Harsh Environment computing the X7000 Touchscreen Monitor has proven itself in the harshest of environments. The quality and integrity of this product ensures sustained reliability and performance.

    The X7000 Standard off-the-shelf Product Range comes standard with M10 side mounting bolts, VGA or DVI or HDMI Video input, USB or Serial Touch Input and in 304 Stainless steel in a brushed finish. The flexibility of the X7000 Monitor Range ensures cost effective range of options to suit virtually any environment. This includes a range of different mounting options, built-in barcode scanners, RFID modules, touch & non-touch options, plus a range of different connector and cabling configurations.

    • Designed and Built for Rugged Harsh Environments
    • High Quality 32 inch Touch Screen
    • 1920 x 1080 (Full HD)
    • Tough Sacrificial Screen Membrane (Replaceable)
    • Fully sealed enclosure
    • IP66 / IP69K
    • 304 Stainless Steel
    • Standard Brushed Finish (optional Highly Polished, Aluminium, Powder Coated Finish, 316 Stainless Steel)
    • IP67 / IP68 industrial connectors (conduit and other cabling options available)
    • VGA or DVI or HDMI Video Input
    • USB or Serial Touch Input
    • M10 Side Bolt mounting standard (variety of other mounting options available)
    • Proven Reliability in Tough Rugged Harsh Environments
    • Designed and Manufactured in New Zealand
    • Australian, New Zealand and Global support
    • Resistive Touch Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • M10 Side Bolt Mounting with Starnuts
    • 230VAC Power Input


    • Projective Capacitive Touch (PCAP) Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • M10 Side Bolt Mounting with Starnuts
    • 230VAC Power Input
    • Stainless Highly Polished Finish
    • 316 Stainless Steel
    • VESA Mount 100mm x 100mm
    • 10~30VDC
    • High Brightness 600 nits for bright environments
    • High Brightness 1000 nits for outdoors

    Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

    Touch Type Resistive or Projective Capacitive (PCAP)
    LCD Size 32 inch, 16:9
    Colours 16.2 million
    Resolution 1920 x 1080
    Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
    Contrast Ratio 500:1
    Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
    Response Time 14.5 msec
    Brightness (Typical) 300 nits (High Brightness options available)
    Power Input 230VAC (optional 10VDC~30VDC)
    Touch USB or RS-232 options
    Video VGA or HDMI or DVI options
    Connectors IP67 / IP68
    Mechanical & Environmental
    Finish 304 Stainless Steel, Brushed Finish (optional Highly Polished, Powder Coated, 316 Stainless Steel, Aluminium)
    Mounting M10 Side Mounts (optional VESA and other)
    Temperature Control HTT
    Barcode Scanner Optional Built-In Barcode Scanner
    Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
