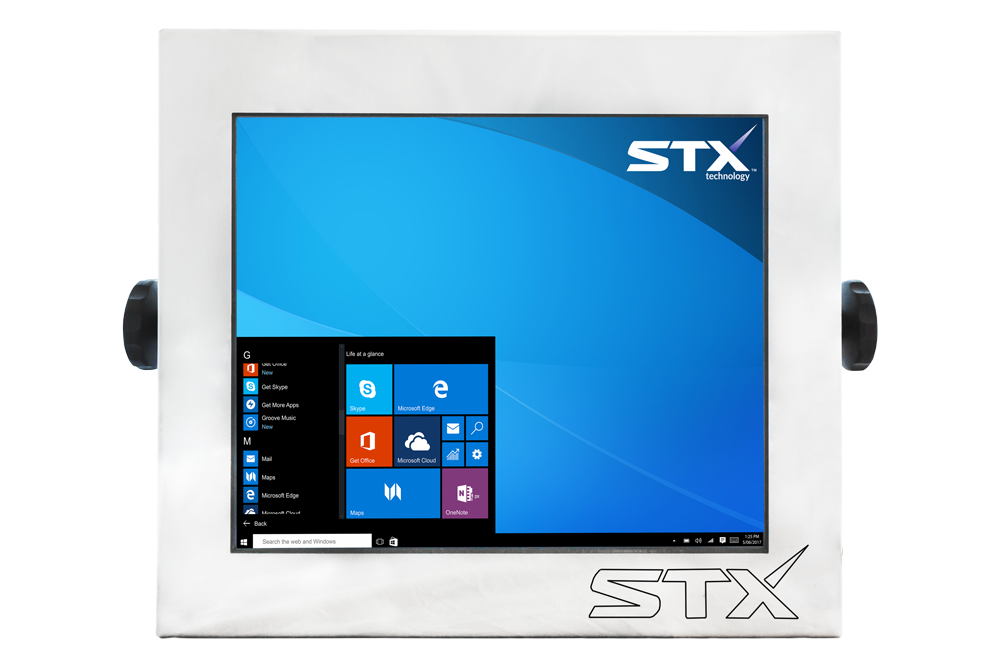

X7008 8 Inch Harsh Environment Touch Monitor

  • 8.4 inch Touch screen
  • Tough Sacrificial Screen Membrane (Replaceable)
  • Proven Reliability in Tough Rugged Harsh Environments
  • Fully sealed enclosure
  • 304 Stainless Steel
  • IP67 / IP68 industrial connectors
  • VGA or DVI or HDMI Video Input
  • designed for industrial use

    proven in extreme conditions

    side stud mounting

    Designed specifically for industrial use

    • Industrial 10VDC~30VDC power input
    • high-quality touch screen
    • fully sealed stainlesssteel enclosure

    Proven in extreme conditions

    • Strong enclosure
    • fanless construction
    • IP67 / IP68 connectors

    Easy mounting options

    • Side stud mount
    • wall mount

    ip rated industrial connectors

    IP Rated industrial connectors

    • 1 x VGA
    • 1 x HDMI
    • 1 x DVI
    • 1 x Audio





    industrial use

    Used across industries

    • Warehousing
    • Food Processing
    • Dairy
    • Mining
    • Transportation
    • Construction
    • Agriculture
    • Horticulture
    • Forestry
    • Marine





    applications

    Applications

    • Information Display
    • Safety
    • CCTV
    • Data
    • Collection
    • Loading Applications
    • Barcode Scanning

    Contact the STX Team today to find out more about the X7008 Harsh Environment Touch Monitor and other products.

    • Designed and Built for Rugged Harsh Environments
    • High Quality 8.4 inch Touch Screen
    • Tough Sacrificial Screen Membrane (Replaceable)
    • Fully sealed enclosure
    • IP66 / IP69K
    • 304 Stainless Steel
    • Standard Brushed Finish (optional Highly Polished, Aluminium, Powder Coated Finish, 316 Stainless Steel)
    • IP67 / IP68 industrial connectors (conduit and other cabling options available)
    • VGA or DVI or HDMI Video Input
    • USB or Serial Touch Input
    • M10 Side Bolt mounting standard (variety of other mounting options available)
    • Proven Reliability in Tough Rugged Harsh Environments
    • Designed and Manufactured in New Zealand
    • Australian, New Zealand and Global support
    touch screen



    X7008 harsh Environment Touch Monitor



    X7008-M-RT
    • Resistive Touch Screen
    • Stainless Brushed Finish
    • 304 Stainless Steel
    • M10 Side Bolt Mounting with Starnuts
    • 100~250VAC



    Harsh Environment Touch Panel PC



    Link Here to Harsh Environment Touch PC

    Upgrade Options



    High Brightness Displays:

    • 600 nits for bright environments
    • 1000 nits for outdoors

    Materials and Finishes:

    • 304 or 316 stainless steel
    • Highly polished
    • Brushed
    • Matte black
    • Aluminium & powder coated




    Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

    Click here and link through to accessories

    Link Here to Accessories

    Touch
    Touch Type Resistive, Projective Capacitive (PCAP) or No Touch Screen

    Display
    LCD Size 8.4 inch, 4:3
    Colours 16.2 million
    Resolution 800 x 600
    Other Supported Resolutions 640 x 480, 800 x 600
    Contrast Ratio 500:1
    Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
    Response Time 14.5 msec
    Brightness (Typical) 300 nits (High Brightness options available)

    Inputs
    Power Input 240VAC or 110VAC or 10VDC~30VDC options
    Touch USB or RS-232 options
    Video VGA or HDMI or DVI options
    Connectors IP67 / IP68

    Mechanical & Environmental
    Finish 304 Stainless Steel, Brushed Finish (optional Highly Polished, Powder Coated, 316 Stainless Steel, Aluminium)
    Mounting M10 Side Mounts (optional VESA and other)
    Temperature Control HTT

    Accessories
    Barcode Scanner Optional Built-In Barcode Scanner
    Keyboard Optional IP68 Keyboard and Keyboard Tray Kit

    X9000 Computer Range

    X7000 Monitor Range

    X7500 Panel PC Range

     X7000 Industrial Rugged Computer  X7000 Industrial Rugged Monitor  X7500 Industrial Fully Sealed Panel Mounted Computer
    • Fully sealed stainless steel enclosure
    • Shielded IP67 / IP68 rated connectors
    • Engineered for tough washdown environments
    • Stainless steel enclosure
    • IP67 / IP68 rated connectors
    • M10 side bolt mounting
    • Fully sealed stainless steel enclosure
    • Fanless design
    • VESA Mount
